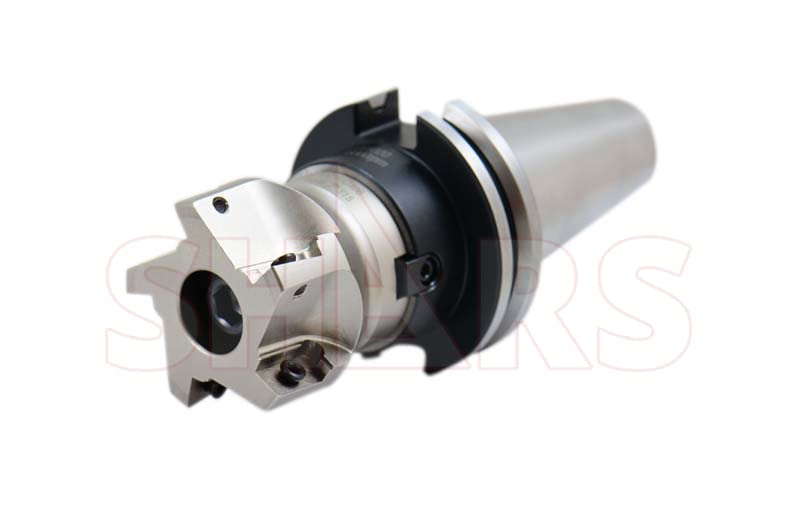

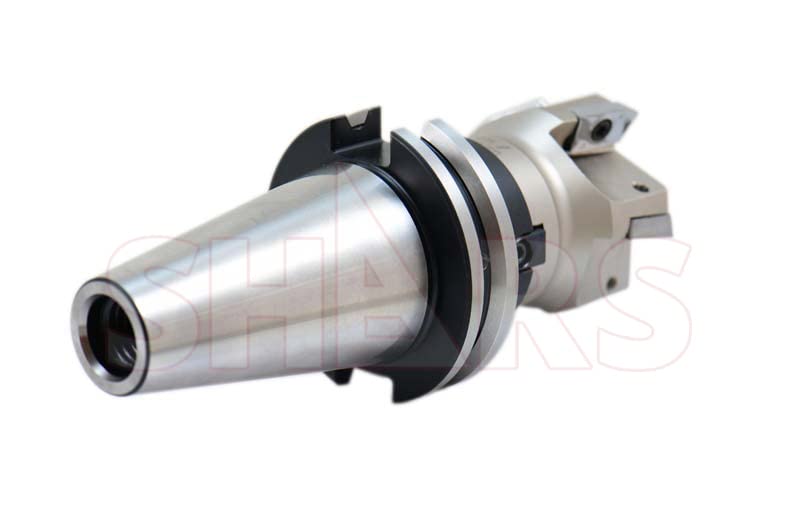

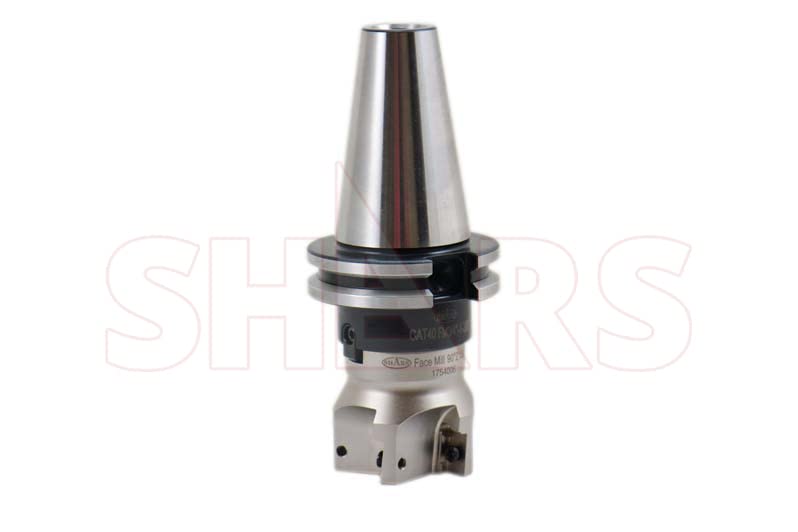

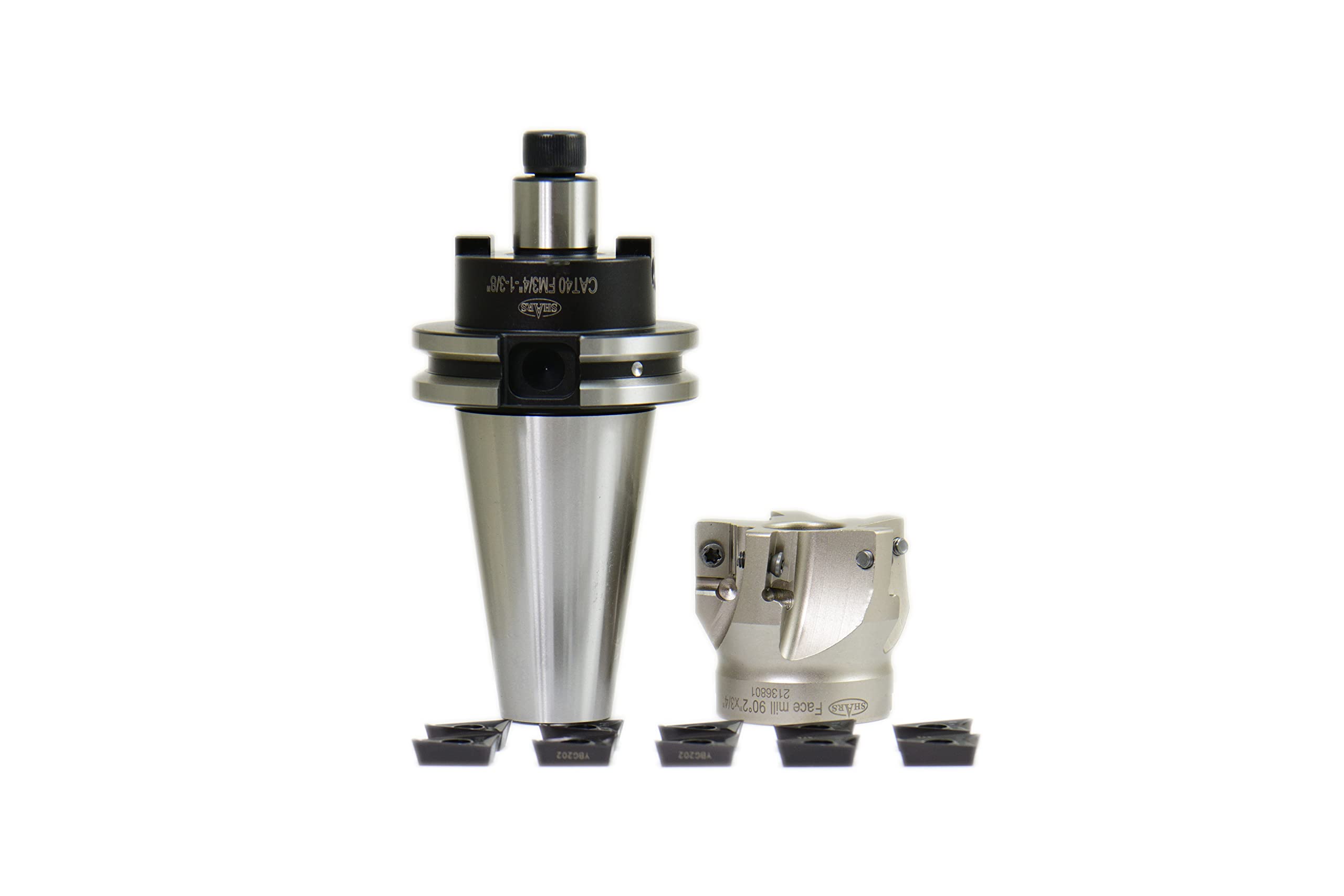

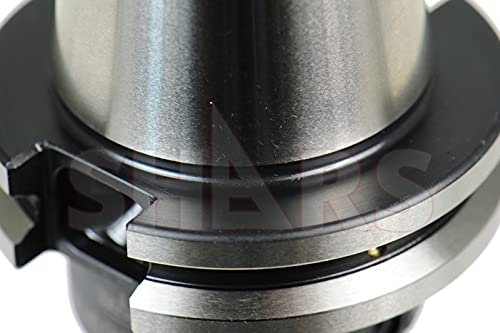

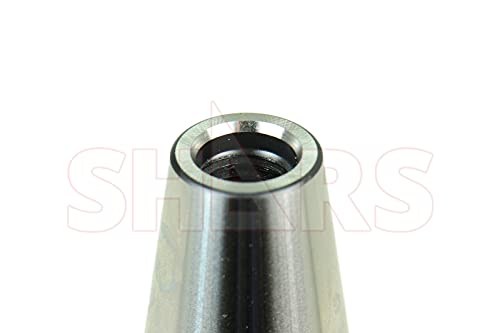

Shars 2" 90 Degree Indexable Face Mill with 10 PCS ZCC USA APKT1604 Carbide Inserts & CAT40 Tool Holder - High Precision Milling Cutter for Metalworking, CNC Machining, and Industrial Applications

Product Description

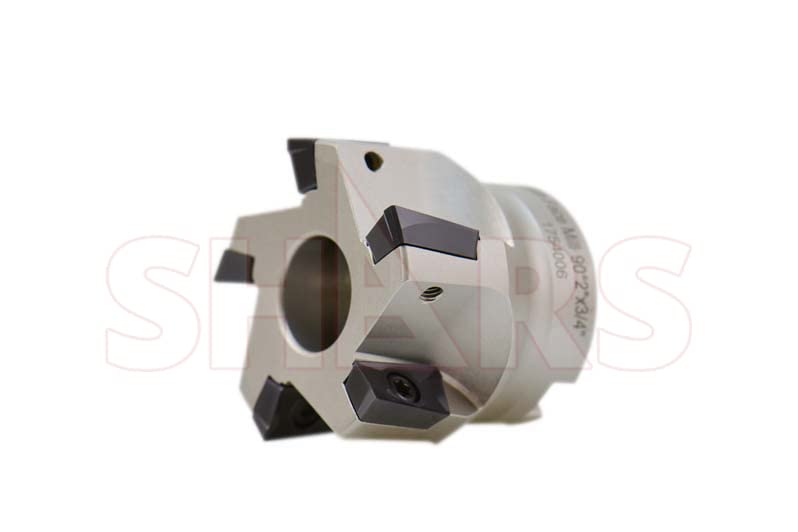

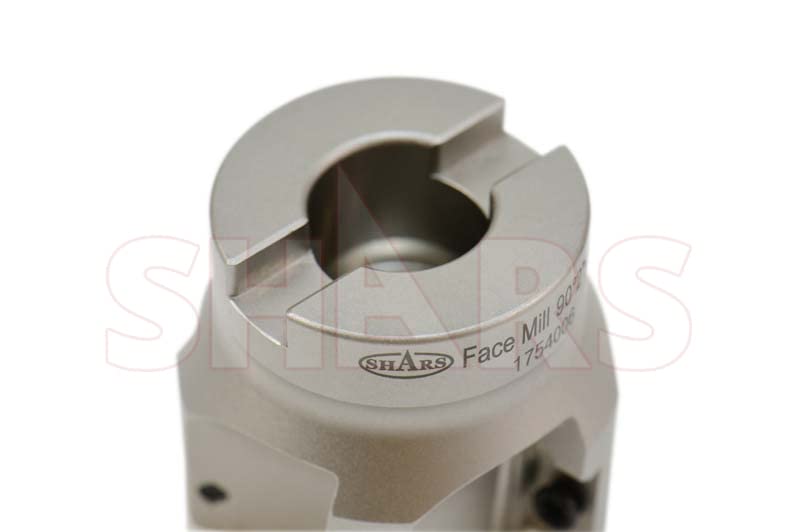

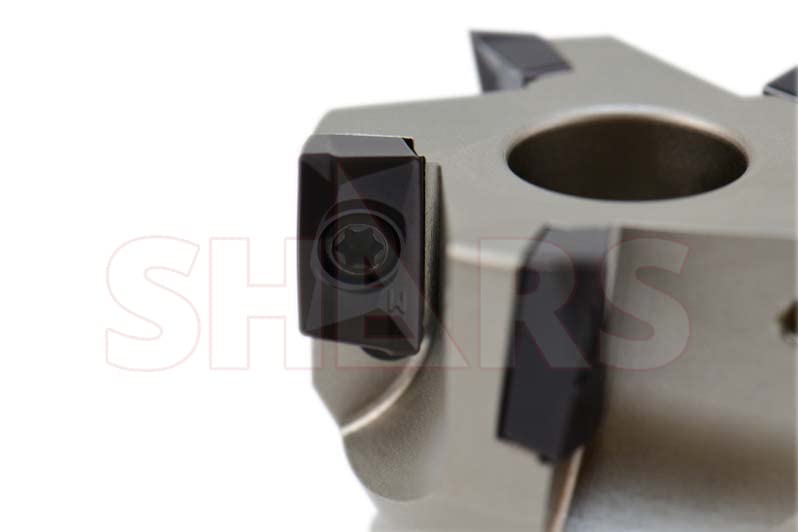

Shars Tool 2" 90 degree Indexable Face Mill APKT Insert Benefit from the 90-degree lead angle allows efficient square shoulder milling and the ability to machine workpieces with weak structures or thin walls over a 45-degree face mill. It uses an industry-standard APKT/APMT 1604 insert with a positive 11-degree clearance angle and depth of cut of 0.551" or 14mm. The insert pockets are designed to be 19 degrees positively inclined to minimize vibration and allow fast cutting and lowering cutting noise. Technical Specs Part# 404-1867WCutting Diameter D: 2"Axial Depth of Cut ap: 0.630" (16.00mm)Arbor Hole Diameter d: 3/4"Overall Height H: 1-3/4"Number of Flutes: 5Screw: M4x8 Features Fitted with 10-degree positive rectangular inserts allow the high depth of cut and feed per toothSetting Angle: 90 degreeRadial rake angle: -10 degreeAxial rake angle: +7 degree Product Spotlight An easy reference guide for insert number, screw, and other accessories is printed on the tool shankCan be used with APKT / APHT / APET / APMT 1604 insert ZCC USA APKT1604 33 PM YBG202 Carbide Insert 10 PCS Set Part# 424-3012Application: Semi-FinishANSI Number: APKT33PDER-PMISO Number: APKT160408PMCoating: PVD Nc-TiAlNSuitable for semi-finish in alloy steel P10-30, stainless steel M10-30 & high-temperature alloy S05-20 Insert Measurement Length: 0.704"; Width: 0.367"; Thickness: 0.227"Through Hole: 0.173; Corner Radius: 1/32" Tegara CAT40 Face Shell Mill Tool Holder Unique design feature in the flange to minimize the off-balance nature of CAT 40 taper specification. On the side of the flange where a half-spherical hole is located, a "wall" is built around this hole to compensate for the weight of the metal chips lost from forming this spherical hole. This design allows the left side and right side of the holder to achieve 50-50 perfect weight distribution in its upright position, like the position inside a machine spindle. Symmetrical design in evenly weight distribution will minimize centrifugal force in high-speed spinning and thus maximize the holder's ability to hold the cutting tool concentric to spindle rotation. Taper ground to AT3 or better accuracy standard for maximum contact with the spindle. All SHARS CAT/BT/HSK tool holders use Stotz Air/Electronic Gaging for production and finish inspection. Stotz has been chosen by major aircraft companies as the best and most consistent gaging for tool holder shanks Features Part# 202-5371Projection Length: 1-3/8"; Arbor Diameter: 3/4";Nose Diameter: 1.75"; Arbor Screw Diameter: 0.56"Key Width For Face Mill Keyway: 0.31"Made from alloy steel hardened to 54-60 HRcAll critical surfaces are precision groundT.I.R. 0.0002" measured from CAT40 taper to face and arborH6 arbor tolerance to improve cutter chattering and overall cutting tool lifeEach holder comes with a lab certificate on its taper accuracy and runout measurement We also offer other tool holder, Retention Knob and inserts Tegara CAT40 3/4" Arbor Dia. Shell Face Mill Tool Holder, 1-3/8" Projection L. Tegara HSK63A 3/4 x 4" Shell Face Mill Tool Holder Tegara CAT40 3/4 x 4 Dual Contact Face Mill Tool Holder Tegara CAT 40 5/8-11 45 Pull Stud Retention Knob for Haas Kitamura Miyano Tegara CAT 40 5/8-11 45 Pull Stud Retention Knob for Fadal Mazak Hurco Tree Shars APKT1604 33 Carbide Insert for Alloy Stainless Steel 10 PCS Set Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 7 — — 4.2 out of 5 stars 11 5.0 out of 5 stars 4 — Price $72.20$72.20 $251.95$251.95 $124.25$124.25 $58.45$58.45 $54.00$54.00 $41.50$41.50 Order No. 202-5371 202-6501 202-6706 202-5925(5) 202-5928(5) 404-6541(10)
